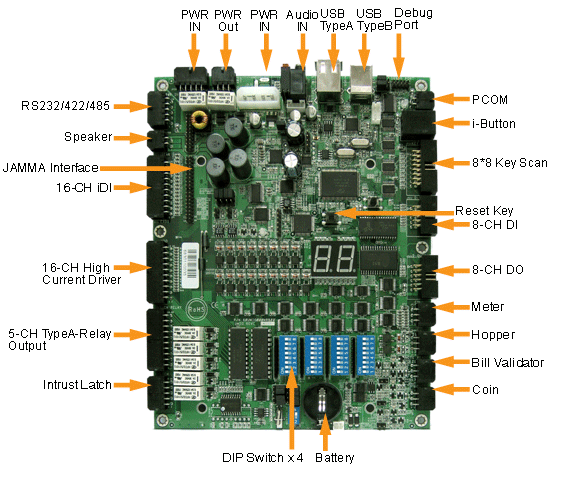

| ITEM |
CONTENT |
COMMENT |
| MCU |
High Performance MCU
|
48MHz |
| RTC |
High precision real time clock
|
2 year long-life time |
| EEPROM |
8 pins socket, I2C serial EEPROM
interface
|
|
| NVRAM |
Battery Backup 512K Bytes SRAM
|
1 year long-life time |
| WatchDogTimer |
hardware watch dog timer
|
|
| Host Interface |
USB Function 2.0 High Speed
480Mbps
|
Type B connector |
| USB Expansion |
USB Host 2.0 High Speed 480Mbps
|
2 channels, Type A connector |
| Coin Mechanism |
cc-talk, HII and coin-pulse
|
1 channel |
| HOPPER |
cc-talk
|
1 channel |
| HOPPER Empty |
12V internal pull-up Empty Detection
interface
|
1 channel |
| Bill Validator |
Supports HII and Buffered RX / TX
interface
|
1 channel |
| Counter |
Supports SEC meters and OEM
meters
|
1 channel |
| iButton |
Dallas 1-wired interface
|
1 channel |
| Security Access |
battery backup
chassis open detection with time stamp
|
8 channels, 1 year long-life
time backup, Monitoring of 8 external switches while powered
down |
| COM |
Standard RS-232/485 with 9bit
protocol
|
1 channel |
| Power COM |
RX / TX / RTS / CTS with 24V power
supplier |
1 channel, optional |
| I2C interface |
SDA / SCL
|
1 channel |
| Isolation DI |
3KV isolated digital input,
5v ~ 30v input range, 2ms real-time response
|
16 channels for micro-fit connector,
24 channels for JAMMA interface |
| High-Driving DO |
12v/24v, 700mA per channel,
10ms response time
|
16 channels |
| Relay output |
Type A (N.O.), 24Vdc / 500mA per
channel
|
5 channels |
| Non-Isolation DI |
Buffered TTL digital input,
2ms real-time response
|
8 channels (16 channels with keypad DI) |
| Non-Isolation DO |
Buffered TTL digital outpu
|
8 channels (16 channels with keypad DO) |
| Matrix keyboard |
Buffered TTL ROW / COL key scan
interface
|
8 x 8 keys, option for 8 x DI,
8 x DO |
| Speaker Amplifier |
Class D amplifier, 4/8Ohm, 20W
|
2 channels |
| DIP-SW |
Configuration 32-bits
|
32 channels |
| 7-SEG LED |
Information Display
|
2 digits |
| JAMMA interface |
Standard JAMMA cabinet interface
included VGA by-pass port
|
1 port |
| Indicators |
Indicator LED on +5V, +12V,
and +24V supplies
|
3 LEDs |
| Power Source |
Controllable +12V/2A and +24V/2A
power output |
1 port |
| Power Supply |
+5V / 500mA
|
+5V for main board, +12V and
+24V for amplifier and I/O connector |
| Mechanical |
Single 4 Layer PCB Assembly,
155mm x 195mm
|
|
| Supported OS |
Windows 2000 / XP / XP embedded
and Linux |
¡@ |
