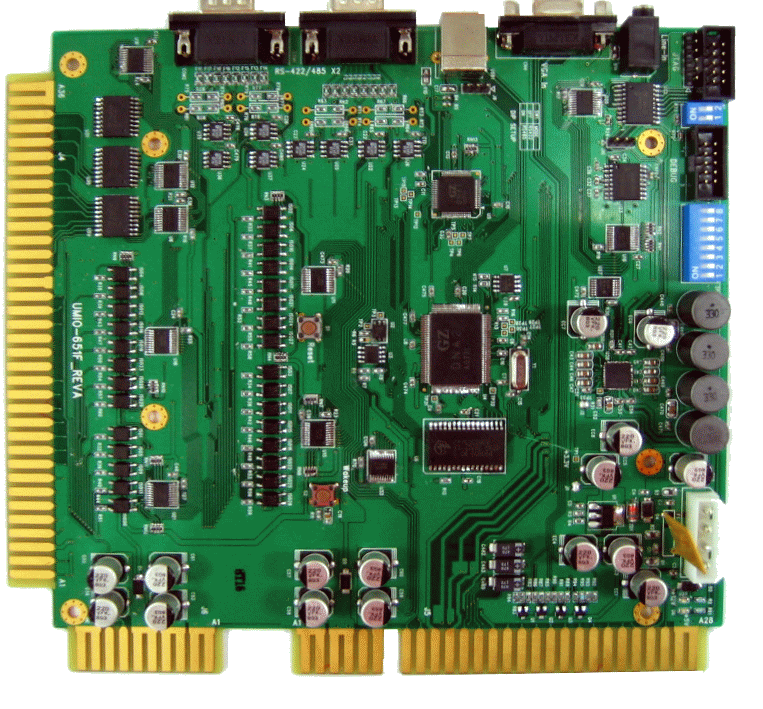

UMIO-651F |
| ¡@ |
¡@ |
 |
¡@ |
| Overview |
|
GZtech
UMIO-651F USB universal I/O board leverages the "Plug and Play"
capability defined in the USB 2.0 bus specification. The board
requires one USB interface within the personal computer and
provides variant I/O channels. All channels are controlled in a
high performance micro controller for simplified communication
access through USB interface. |
|
|
|
Security Key Protection |
|
UMIO-651F
security key provides an encrypted link between your application
program and the system. Each UMIO-651F is pre-programmed with
an unchangeable and undiscoverable Security Key code that is
unique to the user. You can use this unique security code to
ensure that your program only operates with your hardware. |
|
|
|
Stereo amplification |
|
UMIO-651F
provides a stereo amplifier with 10W rms per channel audio
output. |
|
|
|
Reliability |
|
Every UMIO-651F
that we sell goes through a fully tested routine that ensures
the quality and reliability of this product. |
|
|
|
Flexibility |
|
UMIO-651f is
designed to work with user¡¦s mother boards using one USB port,
user can chose the mother board that meet their application
requirements. |
|
| ¡@ |
| Specification |
|
Communication
ports
|
| ▪ USB 1.1 and USB 2.0 compatible host interface |
| ▪ RS422/485*2 |
| ▪ IIC extension port |
| ▪ Virtual COM port driver with 9-bits
feature |
| I/O
ports
|
| ▪ 7*output (open collector) |
| ▪ 1* 8 bit DIP switch |
| Audio
|
| ▪ class D amplifier 10 w/ch |
| Security
|
| ▪ Security Key function to protect against
piracy |
| Indicators
|
| ▪ +5V, +12V power LEDs |
| Connectors
|
| ▪ USB type B connector |
| ▪ JAMMA and Fruit Interface |
| ▪ AT power connector (+5V and +12V input
only) |
| ▪ Audio in: 3 way 3.5mm jack socket |
| ▪ DB9 RS422/485 male*2 |
| ▪ DB15 VGA input |
| Memory
|
| ▪ 8K x 8 Bit EEPROM |
| Supported
operating systems
|
| ▪ Microsoft Windows 2000 / XP / XPe / CE |
| ▪ Linux |
| Power
supply
|
| ▪ Regulated +5V DC input for main system |
| ▪ Regulated +12V DC input for autio
amplifier |
| Dimensions
|
| ▪ 182mm *198mm (2.95"*8.3") |
|
|
| Ordering Information |
| ITEM |
DESCRIPTION
|
| UMIO-6500C |
UMIO evaluation kit |
| UMIO-6500 |
Universal mutil-I/O module |
| UMIO-6510 |
Universal mutil-I/O module |
| UMIO-651F |
Universal multi-I/O module with
JAMMA and Fruit Interface |
|
|
|
