DISPLAY SPECIFICATIONS
♦Display
Type
: OLED
♦Display
Mode
: Passive
Matrix
♦Display
Color
: 65,536
Colors (Maximum)
♦Drive
Duty: 1/64
Duty
♦Number
of Pixels : 96(RGB) x 64
¡@
SWITCH SPECIFICATIONS
♦Function : Normally Open Contact
♦Voltage
: 12 VAC/DC
max. 2 VDC
min.
♦Current
: 10mA AC/DC
max. 100uA
DC min.
♦Insulation
Resistance :
100M£[
at 100V
♦Bounce
Time
:
¡Ø5ms
♦Life
: >
20 million
operations
♦Initial
Contact
Resist.
: <200m£[(25m£[
typical
)
♦Total
Travel :
0.118¡¨ -0.020¡¨

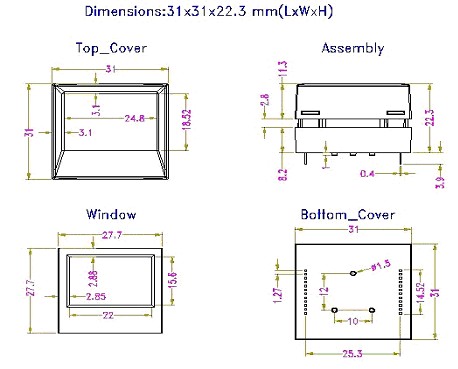

MECHANICAL
DIMENSIONS
♦Dimensions
: 31x31x22.3 mm (LxWxH)
♦Window
Size : 22x15.6
mm (LxW)
♦Active Size:
20.14x13.42
mm
¡@
¡@
|
