| REC-7500 |
| ¡@ |
|
¡@ |
| ¡@ |
| Description |

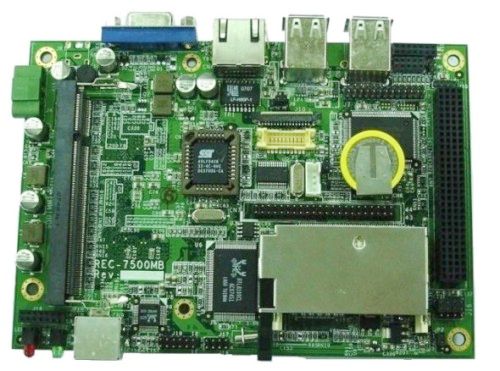

The REC7500 3.5 inch Disk-Size
motherboard incorporates the AMD Geode LX processor with speeds
of 500MHz (LX800). The AMD Geode? LX 800@0.9W processor delivers
the most performance per watt in the industry today, providing
x86 power and versatility to applications for entertainment,
business, education, and embedded markets. Its innovative
architecture and high level of integration enables small form-factor
designs. |
| ¡@ |
| REC7500 FEATURES: |
Supports AMD Geode LX800, 500MHz |
|
DDR SODIMM x 1, Max. 1GB memory |
|
Realtek RTL8100C 10/100M Ethernet |
|
Integrated LX800 2D VGA controller |
|
Supports VGA CRT and TFT/LVDS LCD display |
|
4x USB 2.0, 4x COM, CompactFlash socket |
|
Watchdog timer, 1x PCI104, 1x Mini PCI |
|
| ¡@ |
| Specification |
|
ITEM |
CONTENT |
| CPU |
AMD Geode
LX
LX800 @ 500MHz (REC7500) |
| Chipset |
AMD CS3356 chipset |
| BIOS |
Award BIOS,
4Mbit |
| System Memory |
One DDR SODIMM
socket supports up to 1GB DDR SDRAM
266/333/400 DDR SDRAM |
| Integrated
VGA |
AMD LX800
built-in 2D graphics controller
Supports CRT and TFT LCD display
Supports 24-bit single channel LVDS
64MB shared memory. |
| LAN |
Realtek RTL8100C
10/100M Ethernet controller
RJ-45 on board. |
| Audio |
Line in, Line
out, Mic connectors on board |
| Keyboard and Mouse |
PS/2 type connector |
| UART |
RS2322 x2, RX/TX x2 |
| PARALLEL |
LPT x1 |
| IDE Interface |
One enhanced
IDE channel supports 2 IDE devices; supports UDMA33/66/100 |
| USB (2.0) |
Supports 4
USB ports |
| IrDA |
Pin header |
| Watchdog Timer |
Generates system reset; 256 levels |
| Hardware Monitoring |
Built in W83627HG; monitors system/CPU temperature and
voltage |
| Expansion Slot |
1 PCI104, 1 MiniPCI |
| CompactFlash Socket |
Type II |
| Edge connector |
KB/MS, VGA, USBx4, RJ45 x1 ,CF socket |
| Onboard onnectors/Headers |
COM1/2, IDE, LPT, LPC, IrDA, 44-pin TFT interface |
| Form Factor |
3.5¡¨ Disk Size Motherboard |
| Dimensions |
145mm x 102mm |
|
|
| ¡@ |
| ¡@ |
| ¡@ |
| ¡@ |
| * RoHS Compliant |
|
| ¡@ |
|
| ¡@ |
¡@ |
