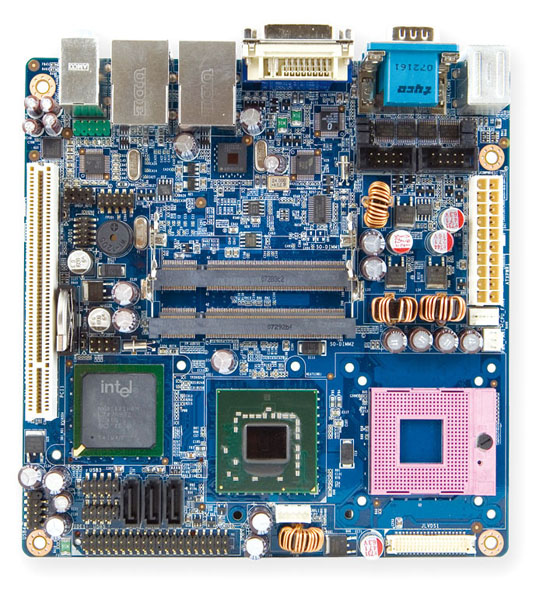

| Nexus-3965GMI1 |
| |
|
|
| |
Features
 Supports
Intel® μFC-PGA 478 / μFC-BGA 479
Pentium® M /
Celeron® M CPU
" |
|
Intel®
82915GME Express Chipset " |
|
Two
DIMMs up to 2 GB DDR2 400/533 SDRAM " |
|
DVI,
2-CH LVDS, Dual View " |
|
Intel®
Graphics Media Accelerator 900 " |
|
Realtek
ALC655 5.1-CH Amplified Audio " |
|
Realtek
RTL8110SC Gigabit LAN " |
|
1
PCI (supports 3 PCI Master), CF " |
|
4
COM, 8 USB 2.0, 2 SATA, 16-bit GPIO " |
|
|
| |
| Specification |
| System |
|
ITEM |
CONTENT |
|
CPU |
Supports Intel®
socket P Core 2 Duo / Core" Duo / Core" 2 Solo /Core"
Solo mobile CPU with 65nm process technology " |
|
FSB |
533/800 MHz |
|
BIOS |
Award 16 MB SPI BIOS |
|
System Chipset |
IntelR GME965/ICH8M |
|
I/O Chip |
Winbond W83627DHG-A |
|
System Memory |
Two 200-pin SODIMM sockets support up to 4 GB Dual
Channel DDR2 533/667 SDRAM |
|
SSD |
One CompactFlash Type I/II socket |
|
watchdog Timer |
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step |
|
H/W Status Monitor |
Monitoring CPU temperature, voltage, and cooling fan
status. Auto throttling control when CPU overheats |
|
Expansion |
One PCI slot (PCI Rev. 2.2 compliant) supports 3 PCI
master |
|
TPM |
Infineon SLB 9635 TCG 1.2 compliant trusted platform
module (TPM) |
|
S3 |
S3 Support |
|
SmartFan Control |
Yes |
 |
|
|
|
|
I/O |
|
|
|
ITEM |
CONTENT |
|
MIO |
1x EIDE, 3 x SATA, 10 x USB, 4 x RS232, 1 x K/B, 1 x
Mouse (COM1~4 with Power output) |
|
USB |
10 x USB 2.0 |
|
DIO |
8-bit General Purpose I/O for DI and DO |
|
|
|
|
|
|
Display |
|
|
|
ITEM |
CONTENT |
|
Chipset |
Intel®
GME965 integrated Graphics Media Accelerator X3100 |
|
Display Memory |
Intel®
DVMT 4.0 supports 384 MB video memory |
|
Resolution |
2048 x 1536 @ 32 bpp(@ 60Hz) |
|
Dual Display |
CRT + LVDS, or CRT + DVI-D |
|
LVDS |
Dual-channel 24-bit LVDS |
|
DVI |
Chrontel Ch7307C DVI transmitter up to 165M
pixels/second |
|
|
|
|
|
|
Audio |
|
|
|
ITEM |
CONTENT |
|
Chipset |
Intel®
ICH8M-DO |
|
Audio Code |
Realtek ALC888 high-definition Audio Codec supports
5.1+2-CH two independent Audio streams |
|
Audio Interface |
Mic in, Line in, (CD Audio in), Line out |
|
Audio Amplifer |
TPA3005D2 5W (per front channel) stereo amplifier |
|
|
|
|
| |
| Ordering Information |
|
ITEM |
CONTENT |
| i965GM-DCQI |
Intel® Core™ 2 Duo / Core™ Duo / Core™ 2 Solo /Core™ Solo Mini ITX
Motherboard with DVI/VGA, 2 x 24-bit LVDS, 5.1 + 2 CH Audio, Giga LAN, 4 powered COM, 10 USB, 2 SATA, 8-bitGPIO, 1 PCI, 6 W audio amplifier & TPM |
| 13GS0700045A11 |
Optional High Performance Socket-478
CPU Cooler(60x60) |
| 14GS0300020V04 |
Realtek ALC888 supports 5.1+2 CH Dual Audio Streams |
|
|
| |
|
| |
|
