| ITEM |
CONTENT |
| CPU |
Intel
Core 2 Duo - T7000 / T5000 Sequences
Intel Core Duo - T2000 Sequences
Intel Core Solo - T1000 Sequences
Intel Celeron M - 400 Sequences |
| System
Chipset |
Intel 945GM + ICH7M |
| Graphic
Processor |
Intel GMA950
IGP |
|
Display
Output |
1 Analog VGA
Output
1 LVDS Output |
| System
Memory |
2 DDR2-400 / 533 / 667 SODIMM up to 2GB |
| Ethernet
NIC |
1 PCIe Gbps On-board |
| Audio |
5.1-Channel AC97 On-board |
| Rear
IO Port |
2 PS/2 Ports
1 VGA Port
2 RS232 Ports
1 RJ45 Ports
4 USB 2.0 Ports
3 Audio Jacks (Line-in / Line-out / MIC) |
| Internal
IO Port |
2 USB 2.0 Ports
2 RS232 Port |
| Storage |
2 SATA Ports
1 PATA Port (44-pin)
1 Type I / II CF Socket on soldering side |
| Expansion |
1 PCIe x 16 Slot
1 Mini PCI Socket |
| BIOS |
Award BIOS |
| Supported O.S |
MS Windows 2000 / XP / XPe / RedHat Linux |
| Board Size (LxW) |
170 x 170 mm |
| Power Supply |
10-pin ATX |
| Operating Temperature |
0 ~ 60 Degree C |
|
Humidity |
10 ~ 85% Relative Non-condensing |

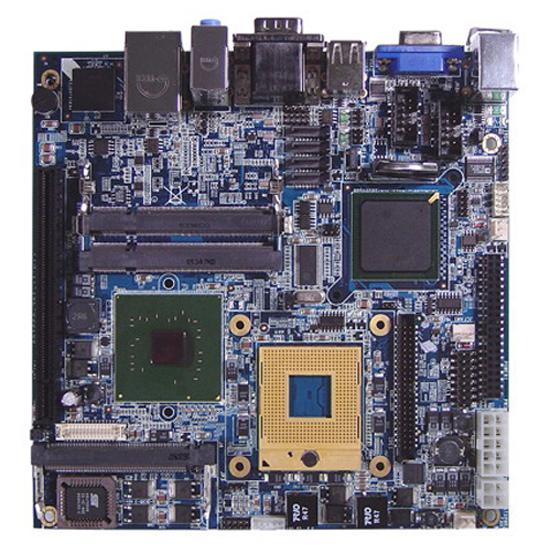

Intel u-FCPGA 478 Core 2 Duo / Core Duo;Core Solo / Celeron M 400 CPU Supported
