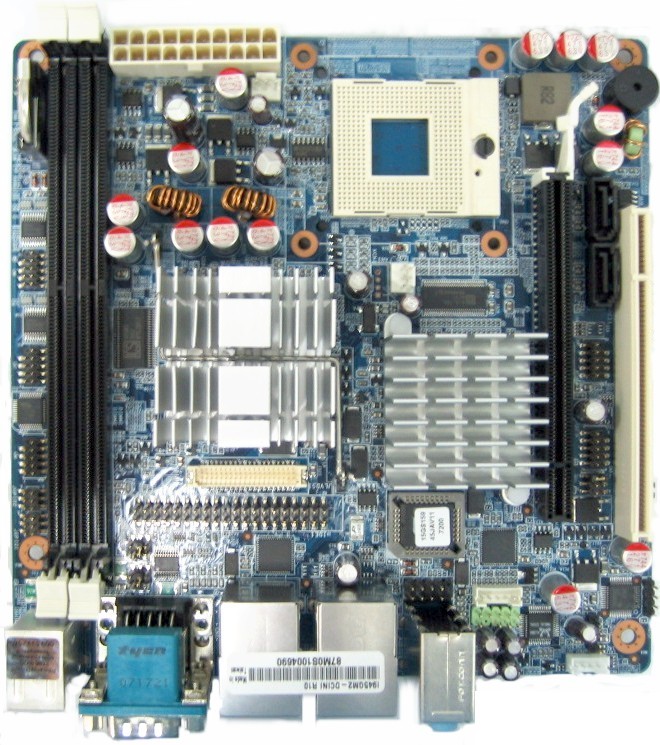

| Nexus-3945GMI1 |
| ˇ@ |
ˇ@ |
 |
ˇ@ |
| Features |
 CPU |
Supports Intel ŁgFC-PGA 478
Core 2 Duo/ Core Duo /Core 2 Solo/Core Solo mobile CPU with 65nm
process technology. |
|
Chipset |
Intel 82945GME Express Chipset |
|
Memory |
Two 240-pin DIMMs up to 4GB Dual Channel DDR2 533/667 SDRAM |
|
Graphic |
Intel Graphics Media Accelerator 950 |
|
Panel |
Dual 18/24*-bit LVDS |
|
Audio |
Realtek ALC888 Audio Code
5.1 CH. with Two independent audio stream
|
| LAN |
Dual Marvell 88E8053 Gigabit LAN Controller |
|
Expansion |
1*PCI-E
X16, 1*PCI, 1*Mini PCI, 1*Type I/II CF |
| I/O |
4*COM,
8*USB2.0, 2*SATA, 1*8-bit Digital I/O |
|
| ˇ@ |
| Specification |
| ITEM |
CONTENT |
| CPU |
Intel CoreTM2Duo
intel®CoreTMDuo
intel®CoreTM2 solo |
| System
Chipset |
Intel® 82945GME/ICH7-M |
| Graphic
Processor |
Intel® GMA 950 |
| Chipset |
intel®
82945GME/ICH7-M |
| Sys Memory |
2*2-CH DDR2
677 up to 4 GB |
| Graphics |
Intel(R)GMA
950 |
| Dual
Display |
CRT+LVDS |
| VGA |
1 VGA Port |
| 2nd Display |
1PCI-E X16 for ADD2 VGA/DVI/LVDS |
| Audio |
5.1+2-CH dual Audio
streams |
| LAN |
2 Gigabit LAN |
| SSD |
Type I/II CF |
| COM |
4 COM(2 with 5v/12v) |
| USB |
4 External+4 Internal |
| SATA |
2 SATA onboard |
| Expansion |
1 PCI-E 16, 1PCI, 1Mini
PCI |
| GPIO |
8-bit GPIO |
| TPM |
|
| Feature |
ˇ@ |
| Size(L*W) |
170mm*170mm |
| |
|
|
|
| ˇ@ |
| Ordering Information |
|
ITEM |
DESCRIPTION
|
| NX-3945GMI1 |
MB Mini-ITX Intel 945GM / ICH7M / 2 PCIe GbE |
| 66X703000C0100 |
DVI Cable for NX-3945GMI |
| 62X703000F0100 |
Cooler 1U for Intel Pentium M CPU |
|
|
