ITEM |
CONTENT |
| CPU |
Intel 1GHz zero L2 cache |
| System Chipset |
Intel 852GM+ICH4 |
| Graphic Processor |
Intel 852GM IGP |
| Display Output |
1 Analog VGA Output
Dual Channel 18-bit LVDS Output |
| System Memory |
1 DDR266 DIMM up to 1GB |
| Ethernet NIC |
1 Intel 10/100 Mbps On-board |
| Audio |
5.1-Channel AC97 On-board |
| Rear IO Port |
2 PS/2 Ports
1 VGA Port
1 RS232 Port
1 RJ45 Port
4 USB 2.0 Ports
1 IEEE1394 Port
1 LPT Port |
| Internal IO Port |
2 USB Ports
3 RS232 Ports
1 Audio Line-out Port |
| Storage |
2 ATA IDE Ports
1 Type I/II CF Socket |
| Expansion |
1 PCI 2.2 Slot |
| BIOS |
Award BIOS |
| Supported O.S |
MS Windows 2000 / XP / XPe / RedHat Linux |
| Board Size (L x W) |
170 x 170 mm |
| Power Supply |
20-pin ATX |
| Operating Temperature |
0 ~ 60 Degree C |
| Humidity |
10 ~ 85% Relative Non-condensing |

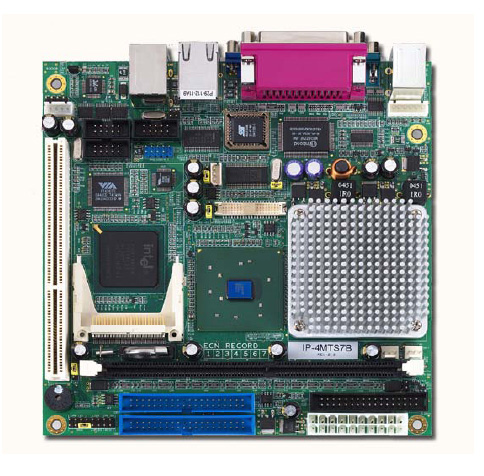

Intel 1 GHz Fanless CPU on-board
