MEDIAX-imx535
|
|
|
|
|
|
|
|

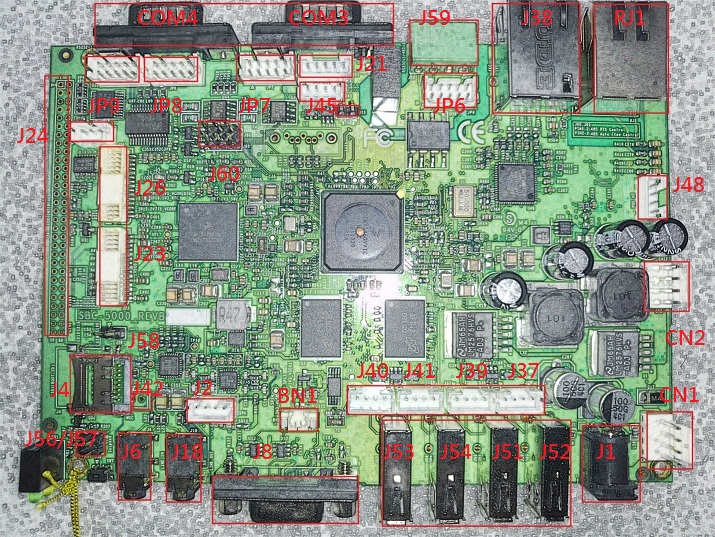

| Description |
|
MediaX-imx535 is a small System-On-Module board designed for embedded gaming applications for data management and multi-media playback. The MediaX-imx535 has all the components required to run operating systems such as Linux and Windows CE. The ready development packages for these operating systems are available from GZ Technologies, Inc. The feature sets of the MediaX-imx535 SOM combines a 32-bit CPU, DDR3 RAM, MicroSD Card Slots, 10/100Mbps Ethernets, Serial ports, General purpose I/O lines and many other essential functions. Based on Freescale's i.mx architecture, the MediaX-imx535 delivers a very good performance to playback MPEG-4 movies and communication ability with the gaming machine controller.
|
|
|
|
Specification
|
|
ITEM
|
CONTENT
|
COMMENT
|
|
|
CPU
|
Freescale i.mx535 ARM Cortex A8
|
1GHz
|
|
|
Memory
|
DDR3 RAM support
|
512MB to 2GB (default 1GB)
|
|
|
SDHC
|
microSD x 2 slots
|
one for boot device
|
|
|
Audio
|
Mic, Line-in/Line-out
|
2W amp for speaker
|
|
|
Display
|
VGA
|
Display upto UXGA (1600 x 1200)
|
|
|
LCD/Touch
|
24 bits LVDS 2 Ch
|
4 wire resistive touch
|
|
|
UART
|
RS-232 x 2 ports
RS-485 x 2 ports
CAN Bus x 2 ports
|
TX/RX/RTS/CTS/GND supported
Auto-Flow and RTS control
|
|
|
Ethernet
|
i.mx535 FEC 10/100 BaseT Ethernet Port x 1
SMSC LAN9514 10/100 BaseT Ethernet Port x 1
|
|
|
|
USB Host
|
USB 2.0 x 4
|
|
|
|
RTC
|
Battery backup RTC
|
Software programmable
|
|
|
I/O Slots
|
4 x slots for modulated IO card, DI/DO/AI/AO and WiFi, RF, Isolation RS 485/422, CAN
|
|
|
|
Dimension
|
146mm x 102mm
|
|
|
|
Power Supply
|
+12VDC
|
+9V to +30VDC
|
|
|
Supported OS
|
Windows Embedded Compact 7.0
Linux 2.6.35
|
|
|
|
|
|
|
|
|
| Ordering Information |
|
ITEM
|
DESCRIPTION
|
|
|
| MX-imx535 |
imx535-1GHz SBC |
|
|
|
|
|
|
|
|
