| Description |

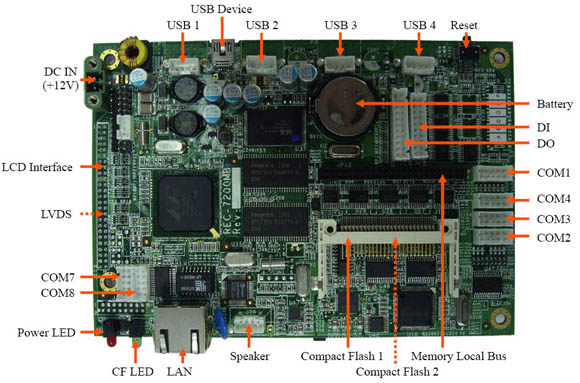

MediaX-270 is a small System-On-Module
board designed for embedded gaming applications for data management
and multi-media playback. The MediaX-270 has all the components
required to run operating systems such as Linux and Windows
CE. The ready development packages for these operating systems
are available from GZ Technologies, Inc. The feature sets
of the MediaX-270 SOM combines a 32-bit CPU, SDRAM, Boot ROM,
Compact Flash, SD Card, 10/100Mbps Ethernet, Serial ports,
General purpose I/O lines and many other essential functions.
Based on Intel's XScale architecture, the MediaX-270 delivers
a very good performance to playback MPEG-4 movies and communication
ability with the gaming machine controller. |
|
| Specification |
| ITEM |
CONTENT |
COMMENT |
| CPU |
Intel
PXA270 |
416MHz,
Up to 624MHz 32-bits XScale architecture |
| SDRAM |
128 Mbytes
|
|
| Storage |
Compact
Flash Card x 2
|
|
| NVRAM |
1 Mbytes
battery backup SRAM
|
16-bits
data bus |
| EEPROM |
128/256
bytes
|
I2C Type |
| Audio |
Stereo
AC97 audio output with 2.1W amplifier, Mono MIC input
|
|
| Display |
up to 800
x 600 x 18, TFT/CSTN/DSTN |
|
| Touch |
4/5-wired
resistance touch panel
|
|
| UART |
16C550
Compatible RS-232 x 4
16C550 Compatible RS-232/RS-485 x 1
|
|
| Ethernet |
10/100
BaseT Ethernet Port x 1
|
|
| USB Host |
USB v1.1
Host Port x 1
|
|
| USB Device |
USB v1.1
Device Port x 1
|
|
| RTC |
Battery
backup RTC
|
|
| Configuration |
8-bits
DIP switch x 4
|
|
| DIO |
16 DI/16
DO Buffered TTL
|
¡@ |
| Battery |
3V Li-Battery
|
Battery
Fail Detection |
| Boot ROM |
512 Kbytes,
up to 1 Mbytes
|
Flash
with hardware write protect |
| Extension
Bus |
16-bits
memory bus for peripheral |
Extend
for Companion Chip, CAN bus, UART, I/O |
| Dimension |
146mm x 102mm |
|
| Power
Supply |
12V
DC |
|
| Supported OS |
Windows CE and Linux |
|
| WDT
|
External Watch Dog Timer
|
|
|
|
| ¡@ |
| Ordering Information |
| ITEM |
DESCRIPTION
|
| MX-EVB-350 |
3.5" LCD Evalution Kit |
| MX-EVB-430 |
4.3" LCD Evalution Kit
|
| MX-EVB-570 |
5.7" LCD Evalution Kit |
| MX-EVB-620 |
6.2" LCD Evalution Kit |
| MX-EVB-700 |
7.0" LCD Evalution Kit |
| MX-EVB-800 |
8.0" LCD Evalution Kit |
| MX-270-416 |
PXA270-416MHz SBC |
|
|
| ¡@ |
|
| ¡@ |
¡@ |
