| LUMI-2000 |
| |
|
|
|
| |
| Description |
The advantage of adopting GZ LUMI-2000 series is ready-to-use. GZ is devoted to improve the usability of embedded computer in industrial domain. Besides operating system (Linux/ WinCE), GZ provides device drivers, protocol stacks, system utilities, supporting services and daemons in one CompactFlash card to make system integration simple. Further, GZ provides application development toolkits for users to build up their own applications easily. |

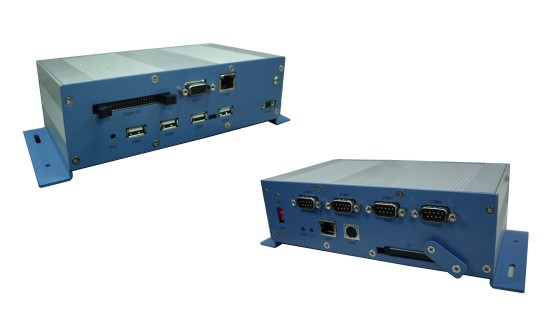

LUMI-2000 is a high performance, compact and rugged embedded computer. All-in-one device with small volume, fanless design and a capability to withstand a wide range of temperatures is suitable for industrial severe environment. It is equipped with Intel Xscale PXA270 RISC processor and 128MB SDRAM (256MB optional) and supports Linux and WinCE5.0 to meet requirements of industrial PC applications. For better expansibility, it carries 4 USB ports, 2 RS-232 ports and 2 RS-232/422/485 ports for versatile peripheral and interfaces and one CompactFlash slot for system integration. It also supports VGA and audio to give users much flexibility in industrial applications. In addition, it is equipped with 2 RJ-45 ports and supports daemons and web server to accommodate to the network communication environment today. |
With complete SW solution and excellent HW design, LUMI-2000 series is the best choice of embedded computer. |
|
| |
| Software Specifications |
Embedded Linux : Linux Version 2.6.18 |
| Protocol Stack |
TCP, UDP, IPv4, SNMP, ICMP, IGMP, ARP, HTTP, CHAP, PAP, SSH 1.0/ 2.0, SSL, DHCP, NTP, NFS, SMTP, Telnet, FTP, PPP, PPPoE |
| System Utilities |
Bash, busybox, tinylogin, telnet, ftp |
| Supporting Services and Daemons |
telnetd: Telnet server daemon
ftpd: FTP server daemon
sshd: Secure shell server
Apache: Web server daemon, supports PHP and XML
MySQL: Database server and client
OpenVPN: Virtual private network service manager
iptables: Firewall service manager
pppd: Dial in/out over serial port daemon
snmpd: snmpd agent daemon
inetd: TCP server manager program |
| Application Development Environment |
GZ Linux API library
Linux tool chain: Gcc, Glibc |
| Device Drivers |
CF card, USB, Watchdog timer, UART, VGA, Audio |
Windows CE 5.0 |
| Protocol Stack |
TCP, UDP, IPv4, SNMP, ICMP, IGMP, ARP, HTTP, CHAP, PAP, SSL, DHCP, SNTP, SMTP, Telnet, FTP, PPP |
| System Utilities |
Windows command shell, telnet, ftp,web-based administration manager |
| Supporting Services and Daemons |
Telnet server: Allows remote administration through a standard telnet client
FTP server: Used for transferring files to and from remote computer systems via a network
Web server (httpd): WinCE IIS, offer ASP, ISAPI Secure Socket Layer support, SSL 2, SSL 3, and Transport Layer Security (TLS/SSL 3.1) public key-based protocols, and Web Administration ISAPI Extensions.
Dial-up networking service: RAS client API and PPP, support Extensible Authentication Protocol (EAP) and RAS scripting |
| Application Development Environment |
WinCE 5.0 SDK
C libraries and run-times
Component services (COM and DCOM)
Microsoft Foundation Classes (MFC)
Microsoft .NET Compact Framework
XML including DOM, XQL, XPATH, XSLT, SAX2,
SOAP Toolkit
Winsock 2.2 |
| Device Drivers |
CF card, USB, Watchdog timer, UART, VGA, Audio |
|
| |
Hardware Specifications |
| System |
| Processor |
Intel Xscale PXA270 RISC 416MHz |
| System Memory |
SDRAM 128MB, Max. 256MB (Optional) |
| VGA |
8MB, DB-15 connector |
| Ethernet |
10/100 Based-TX RJ-45 connector x2
Built-in 15KV ESD protection for all signals |
| SSD |
Type II CompactFlash slot x1 |
| Serial Port |
RS-232 x2, RS-232/422/485 x2 |
| Audio |
AC97, Mini-DIN connector x1 |
| USB |
USB 1.1 x4 |
| Digital I/O |
16 in & 16 out digital IO |
| System Control |
Power on/off switch x1
Reset button x1 |
| Watchdog Timer |
Generates a time-out system reset, 1.6 sec |
| Power Supply |
DC input: 10 ~ 48 VDC
AC input: 100 ~ 240 VAC@50~60Hz |
| Device Drivers |
Embedded Linux 2.6.18
WinCE 5.0 |
| Mechanical |
| Construction |
Rugged aluminum alloy chassis |
| Color |
Aluminum |
| Mounting |
Wallmount (Default), DIN Rail |
| Dimension |
113(W) x 65(H) x 107(D) mm |
| Weight |
1.0 kg |
| Environment |
| Operating Temp |
5°F ~ 158°F (-15℃ ~ 70℃ ), 5 to 95% RH |
| Storage Temp |
-4°F ~ 176°F (-20℃ ~ 80℃ ), 5 to 95% RH |
| Anti-Vibration |
5 G / 5 ~ 500Hz / random operation |
| Anti-Shock |
50 G peak acceleration |
| EMC |
CE/FCC class A, UL |
| Warranty |
1 years |
|
| |
| Ordering Information |
| ITEM |
DESCRIPTION
|
| LUMI-2000d |
Intel PXA270 416MHz,7~40VDC,128MB SDRAM |
| LUMI-2000d48 |
Intel PXA270 416MHz,48VDC,128MB SDRAM |
| LUMI-2000a |
Intel PXA270 416MHz,AC100~240V,128MB SDRAM |
|
|
| |
|
| |
|
