RBA-150





Overview

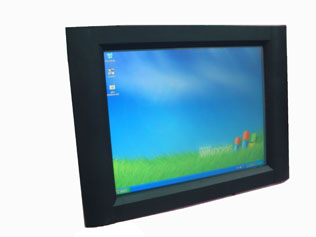

GZ Tech’s RBA-150 HMI controller uses a 3.5 inch Disk-Size motherboard incorporates the AMD Geode LX800 processor, a 15” TFT LCD display with 4 wire resistive touch panel, 2 RS232 port, 2 RS485 port, 1 10/100 MHz Ethernet port, 1 CF slot for OS/DATA storage.

The AMD Geode™ LX 800@0.9W processor delivers the most performance per watt in the industry today, providing x86 power and versatility to applications for entertainment, business, education, and embedded markets. Its innovative architecture and high level of integration enables small form-factor designs.

Feature

·．Fanless design for industrial applications.

·．Supports AMD Geode LX800, 500MHz (0.9W).

·．DDR SODIMM 512MB x 1, Max. 1GB memory.

·．Realtek RTL8100C 10/100 MHz Ethernet.

·．Integrated LX800 2D VGA controller.

·．Supports VGA CRT and TFT/LVDS LCD display.

·．4x USB 2.0 (2 internal), Compact Flash socket.

·．Watchdog timer.

·．1x PCI104, 1x Mini PCI (internal socket).

Specification Highlight
 ITEM  CONTENT
CPU AMD Geode LX
LX800 @ 0.9 W
Chipset AMD CS3356 chipset
BIOS Award BIOS,4Mbit
System Memory One DDR SODIMM socket with 512MB SDRAM, supports up to 1GB SDRAM
Integrated VGA AMD LX800 built-in 2D graphics controller
Support CRT and TFT LCD display
64MB shared memory
LAN 1 10/100 MHz Ethernet port
Serial Ports 2 x RS232, 2 x RS485
USB(2.0) 2 x USB 2.0 ports
Watchdog Timer Generates system reset:256 levels
Hardware Monitoring Built in W83627HG; monitors system/CPU temperature and voltage
Compact Flash Socket Type II
OS Supported Windows CE 5.0, XP, XPe, Linux
Dimensions 417mm(L) x 305mm(H) x 85mm(D) For 15”
Display TFT LCD, Resolution: 1024 x 768
Touch panel 4 wire resistive
Ordering Information
ITEM
DESCRIPTION
RBA-700  7” TFT LCD Touch Panel
RBA-150  15” TFT LCD Touch Panel
