MBA-700H |
| |
|
 |
|
| |
|
Overview |
|

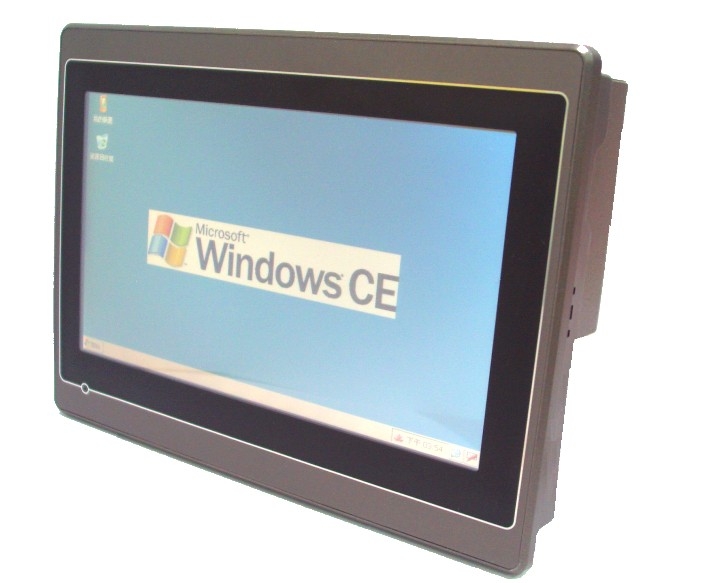

GZ Tech’s MBA series touch panel computers
provides an open HMI platform for most automation applications.
Equipped with Intel PXA 270 RISC processor and 7” TFT
panel with touch screen, MBA provides fan less solution with up
to 800 x 480 TFT resolutions. 10/100M Ethernet port and 2 UART
ports enable MBA to support most industrial communication
protocols. |
|
|
Feature |
|
Robust design with fan less RISC processor
for industrial environments, RS232 and RS485 for communication,
Ethernet for network capability, USB host/device ports for easy
programming and fast application development, and wide range DC
power input. |
|
| |
| Specification
Highlight |
|
|
CPU |
Intel PXA270 416MHz, up to 624MHz |
|
|
32-bits XScale architecture |
|
SDRAM |
128 Mbytes (256MB optional) |
|
Storage |
Compact flash Card x 1
(x 2 option) |
|
NVRAM |
1 Mbytes battery backup
SRAM (option) |
|
EEPROM |
128/256 bytes 12C Type |
|
Audio |
Stereo AC97 audio output
with 2.1W amplifier |
|
Display |
Up to 800 x 600, 16 bits,
TFT/CSTN/DSTN |
|
Touch |
4-wired resistance touch
panel |
|
UART |
16c550 compatible RS-232 x 3 |
| 16c550
compatible RS-232/RS-485 x 1 |
|
Ethernet |
10/100 Base-T Ethernet port
x 1 |
|
USB Host |
USB v1.1 host port x 1 |
|
USB Device |
USB
v1.1 host port x 1 |
|
RTC |
Battery backup external
RTC |
|
Battery |
3V
Li-Battery with battery fail detection |
|
Boot ROM |
512 Kbytes |
|

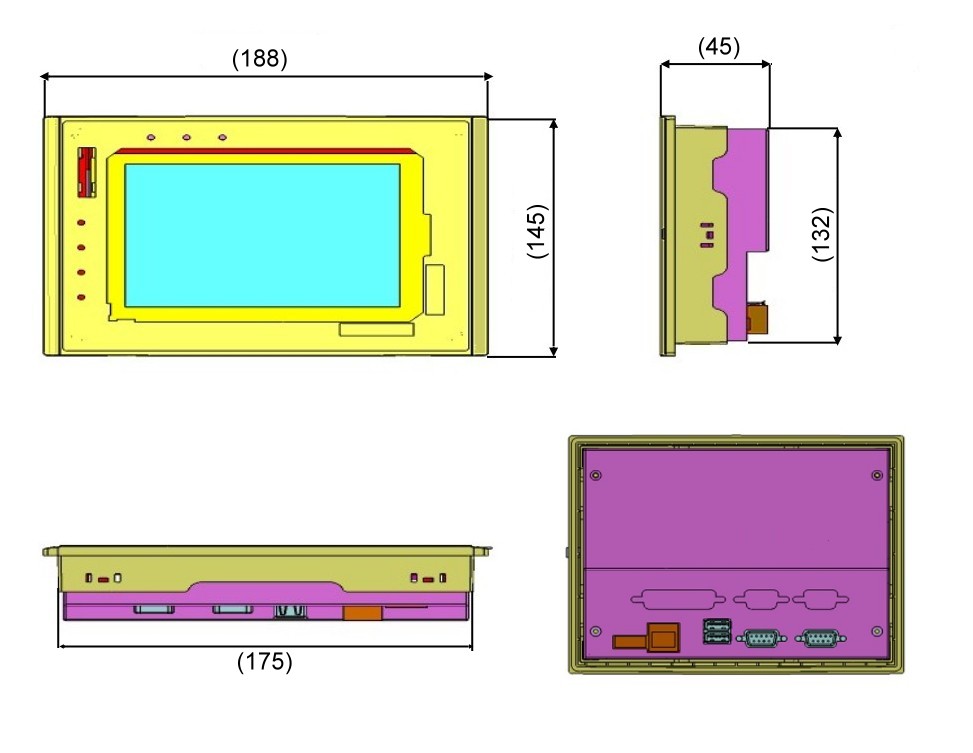

Dimension |
186mm x
145mm x 45.4mm |
|
Power Supply |
12v DC (9~36v) |
|
Supported OS |
Windows CE and Linux |
|
|
|
|
 |
 |
| Ordering Information |
| ITEM |
DESCRIPTION
|
| MBA-700H |
7” TFT LCD Touch Panel |
| MX-270-416 |
PXA-270 416MHz SBC |
|
|
| |
