| AIC-LX800 |
| ¡@ |
| |
¡@ |
| ¡@ |
| Description |

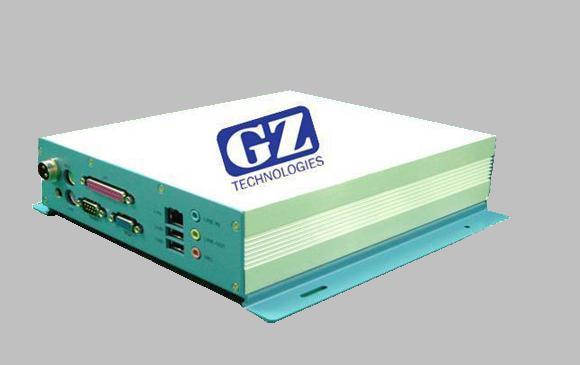

| The AIC-LX800
Mini motherboard incorporates the AMD Geode LX processor with
speeds of 433 MHz (LX700) or 500MHz (LX800). As of this writing,
it comes with two board versions, namely:
AIC-LX800 - AMD Geode LX700,
433MHz, Mini ITX motherboard w/VGA, 10/100 LAN, CF
AIC-LX800F - AMD Geode LX800,
500MHz, Mini ITX motherboard w/VGA, dual 10/100 LAN, CF
The AMD GeodeTM LX800@0.9W processor
delivers the most performance per watt in the industry today,
providing x86 power and embedded markets. Its innovative architecture
and high level of integration enables small form-factor designs.
The AMD Geode LX700@0.8W processor delivers great performance
at lower power for value, embedded applications, while delivering
full x86 functionality. |
|
| ¡@ |
| Features |
Supports AMD Geode LX, 433MHz (LX700) / 500MHz (LX800) |
|
DDR DIMM x 1, Max. 1GB memory |
|
One or two Realtek RTL8100C 10/100 Ethernet |
|
Integrated LX800 / LX700 2D VGA controller |
|
Supports VGA CRT and TFT / LVDS LCD display |
|
4 x USB 2.0, 4 x COM, CompactFlash socket |
|
Watchdog timer, Digital I/O, 1 x PCI, 1 x Mini PCI |
|
| ¡@ |
| Specification |
|
ITEM |
CONTENT |
| CPU
|
AMD
Geode LX
LX800 @ 500MHz (MB500F)
LX700 @ 433MHz (MB500) |
| Chipset |
AMD CS3356
chipset |
| BIOS
|
Award
BIOS, 4Mbit |
| System
Memory |
One
DDR socket supports up to 1 GB DDR SDRAM 266/333/400 DDR
SDRAM |
| Integrated
VGA |
AMD
LX800 / LX700 built-in 2D graphics controller
Supports CRT and TFT LCD display
Supports 24-bit single channel LVDS
64MB shared memory |
| LAN |
One
or two Realtek RTL8100C 10/100 Ethernet controller RJ-45
on board |
| Audio |
Line
in, Line out, Mic connectors on board |
| Multi
I/O |
AMD
CS5536 + Winbond W83627HF + Fintek F81216D
Supports 1 x IDE, 1 x FDD, 1 x KB, 1 x Mouse, 4 x RS232,
1 x LPT |
| IDE
Interface |
One
enhanced IDE channel supports 2 IDE devices; supports
UDMA33/66/100 |
| FDD
Interface |
Onboard
slim FDD connector |
| Serial
Ports |
Four
Serial ports (COM2 configurable as RS422/485) |
| USB
(2.0) |
Supports
4 USB ports (2 ports + 2 ports via pin header) |
| IrDA |
Pin header |
| Keyboard and
Mouse |
PS/2 type connector
|
| Watchdog Timer |
Generates system reset; 256 levels
|
| Hardware Monitoring |
Built in W83627HF;
monitors system/CPU temperature and voltage |
| Digital I/O |
4 in / 4 out |
| Expansion Slot |
1 PCI, 1 MiniPCI |
| CompactFlash Socket |
Type II |
| Edge Connectors |
PS/2 KB & Mouse, 4 x USB, COM1, LPT, RJ45, VGA, LAN1
RJ45,
LAN2 RJ-45 (MB500F only), SPDIF |
| Onboard Connectors / Headers |
CF socket, COM2/3/4, IDE, FDD, USB, IrDA, 44-pin TFT
interface |
| Form Factor |
Mini-ITX Motherboard |
| Dimensions |
170mm x 170mm |
|
|
|
| ¡@ |
¡@ |
